For the best of global knitting industry

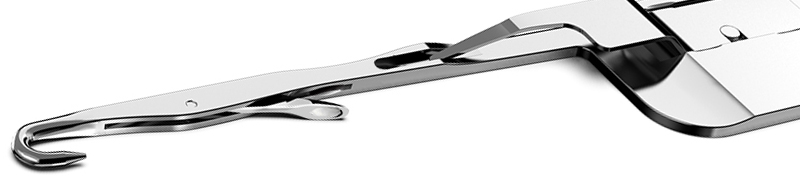

Ideal solution for your FLAT machine
The elasticity and stability of stitches can be enhanced by FLAT needle that provide high level of finish and uniform quality.
Provide high level
More than ever we can provide the
ideal solution for your FLAT machine
Provide high level
More than ever we can provide the
ideal solution for your FLAT machine
Provide high level
More than ever we can provide the
ideal solution for your FLAT machine
New type needles are designed to guarantee automatic latching of spring-back of the needle to open & close position.
This technique ensures the formation of uniform loop even when knitting multiple threads of bulky yarns.
Weak hardness that caused problems including bending and losing clip is enhanced and thus able to provide flexible movements without any quality problem.
Stoll CMS Innovation
Resistance up to Customer Satisfaction!
Stoll needle must be manufactured to a very high level of finish and uniform quality for creating perfect stiches. Samsung Stoll Needle elevated its elasticity & stability by special treatment.
Reference
| I.D No. | REFERENCE | GAUGE |
|---|---|---|
| 213 389 | VOSASPEC 134.182-160S01 | E3-4 |
| 232 681 | VOSASPEC 110.130-110 S010 | E4 (E3.52) |
| 205 396 | VOSASPEC 110.130-110 S010 | E5-6 (E3.52) |
| 205 397 | VOSASPEC 110.130-100 S06 | E7 |
| 208 745 | VOSASPEC 111.130-100 S08 | E8 |
| 207 349 | VOSASPEC 112.88-75 S010 | E8 (E6.2) |
| 205 398 | VOSASPEC 112.88-75 S08 | E10 (E6.2) |
| 204 009 | VOSASPEC 112.88-68 S06 | E12 |
| 225 230 | VOSASPEC 112.70-62 S01 | E10 (E7.2) |
| 227 756 | VOSASPEC 112.70-62 S02 | E12 (E7.2) |
| 209 614 | VOSASPEC 112.70-62 S01 | E14 |
| 232 243 | VOSASPEC 96.52-47 S05 | E16 |
| 227 755 | VOSASPEC 96.52-47 S04 | E14 (E9.2) |

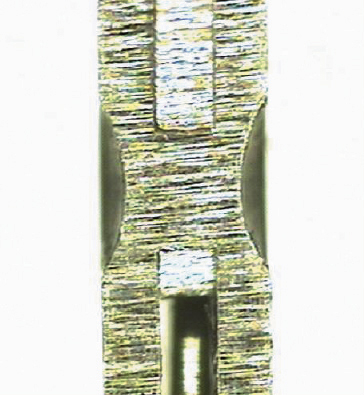

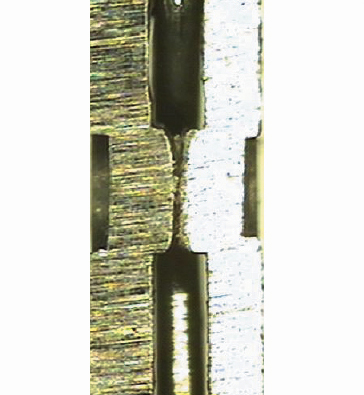

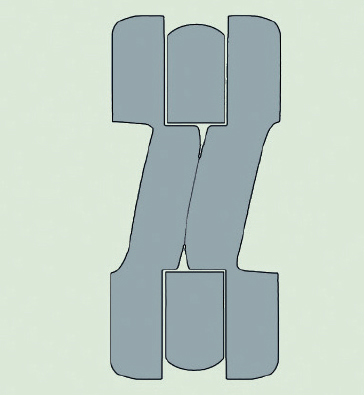

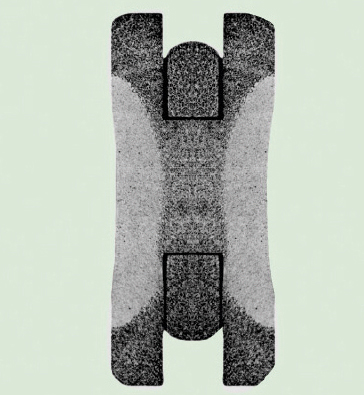

Laser Welding
at Rivet
The strong point of welding rivet
The maintence of an exact allowance distance from needle groove.
To be possible to keep the solid connection between needles.
To minimize the abrasion of rivet.
To minimize the defective fabric.

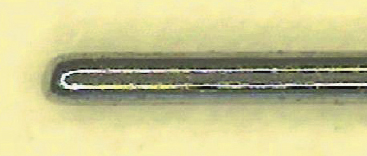

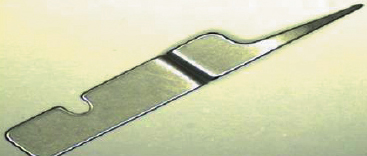

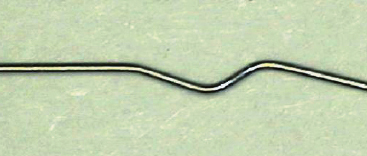

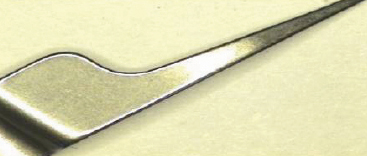

Transfer Clip / Sping
Although the hardness was increased up to 61-62 (previous HRC58-59), the force of restoration is stronger than before.
- For stable moving with best elasticity

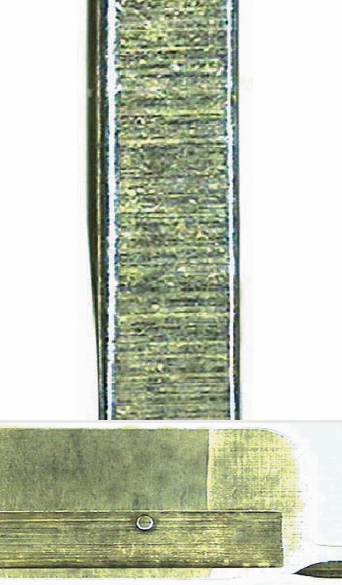

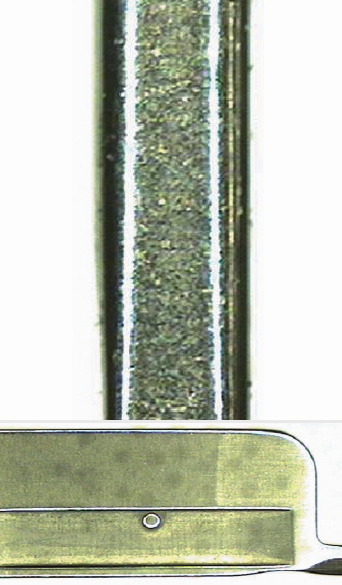

Comparison of Illumination /
Surface
We achieved excellent illumination / Surface than other competitiors.
Spare parts and needles for flat bed knitting machines
Large product range for all important flat bed knitting machines. Optimum matching of parts and needles. Years of experience with fineblanked and stamped parts coupled with the expertise of the SAMSUNG springs divisionpaved the way for expansion of our product range into the flat bed sector.

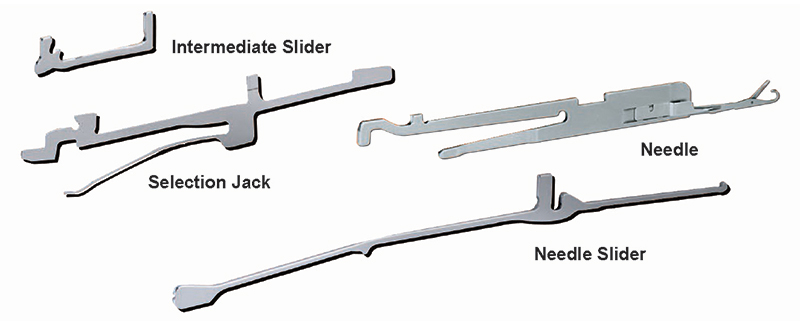

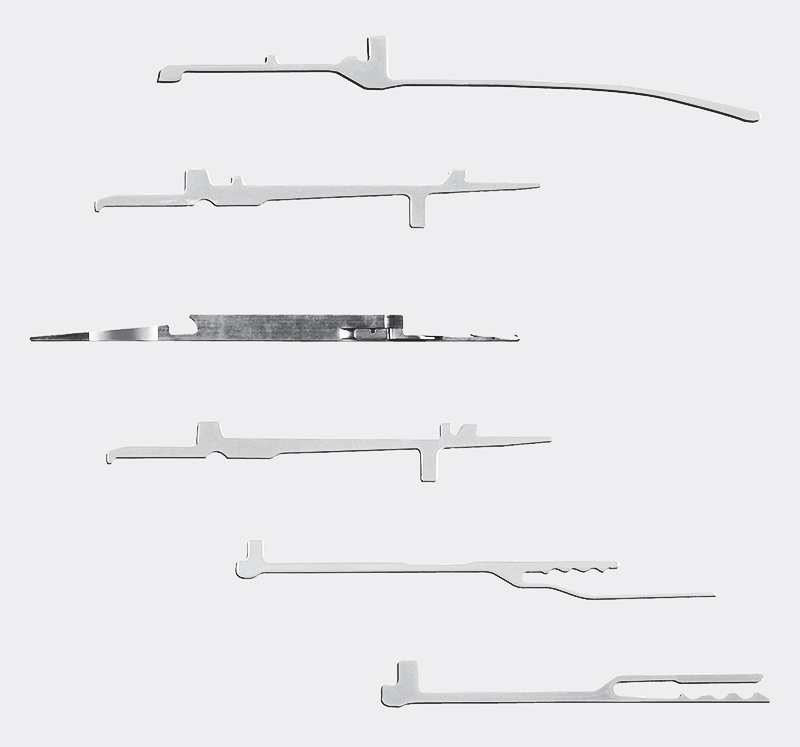

Layout
Full range, Full operation! Shima Needle
Computerized flat / Whilegarment
More than ever we can provide the ideal solutions for Shima M/C.
Reference
| SHIMA | GAUGE |
|---|---|
| VOSASPEC 89.68-52 S07 | E16 |
| VOSASPEC 89.75-55 S015 | E14 |
| VOSASPEC 89.75-55 S038 | E14 |
| VOSASPEC 89.75-64 S016 | E12 |
| VOSASPEC 89.90-70 S07 | E10 |
| VOSASPEC 89.118-82 S010 | E8 |
| VOSASPEC 89.75-52 S01 | E7.2 |
| VOSASPEC 89.118-85 S09 | E7 |
| VOSASPEC 89.150-94 S05 | E5.5 |
| VOSASPEC 89.150-100 S09 | E5 |
Sinkers and needles
for flat bed knitting
machines
Large product range for all important flat bed knitting machines. Optimum matching of parts and needles. Years of ecperience with fineblanked and stamped parts coupled with the expertise of the SAMSUNG springs division paved the way for expansion of our product range into the flat bed srctor.
Needles
Selectors
Couplings
Sinkers
Needle bed bars
Diverse machine parts
Assemblies
